Object oriented graphics and database system for railways
The invention
  • The problem to be solved:
    Computer processing of the relevant railway related parameters for decision making and for the design process.
  • Definition:
    Our invention is a self developed 4th generation client server, data base management software for IBM-PC-WINDOWS environment. This software is able to display the railway network in user friendly way in graphical form. It is also possible to show all the objects of the network and also the parameters of these object (for example tracks, signals, level crossings, equipment, different kinds of installations etc.). The invention supports the work of the staff of different divisions, of the decision makers (in connection with the questions of developments), of the authority (it supervises the railways) and of the owner.
  • Presentation:

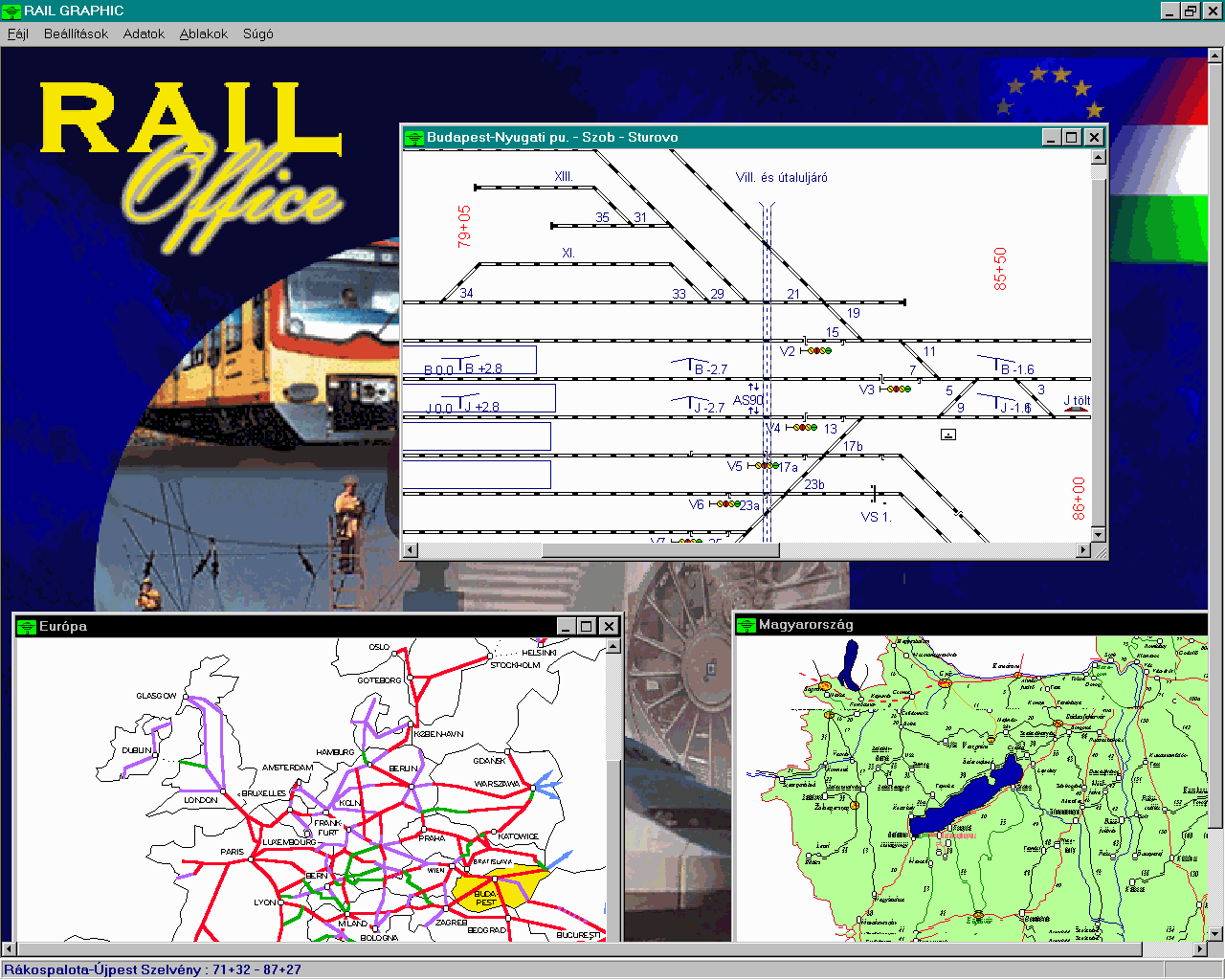

    Our software is a railway object oriented, fully graphical data base management system. Using the self developed editors of railway objects, of railway network and its data input modules the complete railway lines and a complete - geographical map based - railway network of a selected country can be edited. The data base consists of 6500 km of the whole network with length of 7600 km. All objects are grouped according to different professions. To each object a data base can be linked which data base can contain technical, operational, trade and economical data. The display of graphical information can be set according to the professional layers. The selected railway lines can be rolled very quickly on the screen thanks to the graphical method of displaying. In this way the requested data of the object can be found easily. All the graphically displayed information and every data can be printed out in order to support the elaboration of necessary documentation and the decision making process.

  • Application: Railway
  • Advantages:
    The system does not require specific hardware and software environment taking into account its application on the whole network (as it is required by space informatics systems). Therefore its implementation can be very quick, the maintenance and operation is cost effective (cheap). Thanks to the modular structure it is possible to develop new modules, applications. The SQL data base makes the system compatible with other applications. The used software is a base for a future. The proposed system can be used as a substitute of a very expensive (some Mrd HUF) space informatics system and it is the basic software for many specific railway applications (dispatcher system, environment protection module, regional and suburban train operation module, maintenance module, time table planner).
  • Stage of development:
    C++ / DOS ver. 1995.
    Delphi 1.0 / Windows 1996.
    Delphi 4.0 C/S Windows 1999/2000.
  • Documentation available:
The inventor(s)
  • Name(s):
    Attila Rixer, Dr, candidate, mechanical engineer
    Tibor Kardos, engineer of transport automation and economics
    Zoltán Kuricz, electric and informatic engineer
    József Honza, product engineer of transport automation
  • Self introduction:
    The development team has been established during the development and installation of the computer based centralise traffic control system on the South Balaton railway line in 1991-94. Since this time the team have been dealt with software and hardware development for railway technological applications as well. All they are employees of MÁV and all they act as private undertakers.
The protection
  • Form: Author rights (Artisjus: 981221004/S)
  • Priority:
  • Countries where it is force:
Business intention: Sales for all Hungarian railway operators, authorities and owners (MÁV Rt, GySEV, BKV, KHVM, General Authority)
Foreign railway organisations, International Union of Railways (UIC)
