The
invention
- The
problem to be solved:
Collection of periodicals in a new and
cheap kind of file, looking like a book.
|
- Definition:
The coversheet shall
be made of a hollow structured plastic
sheet. The clamps, made of copper, shall
be laced into the hollows, cut out on the
spine of the cover sheet. The opened and
spread periodical shall be fixed by
bending the clamps, facing one another.
|

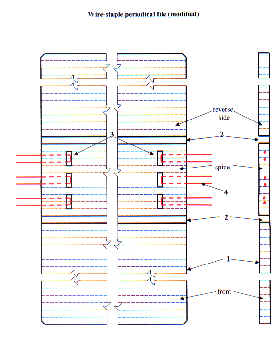

- Presentation:
Coversheet: the hollow-cell
structured plastic sheet is made of 2
pieces of oblong-formed plane-sheets,
which are connected each other by a
parallel and for the planes perpendicular
ribbing (1). The size of that depends on
the size and the quantity of periodicals.
In order to make the bending easier, two
hollows will be open (2). Among them is
situated the spine. On the spine shall be
made the holes for the copper wires by
melting it (3). Into those holes shall be
laced the soft “U”-shaped copper
wires (4), then they shall be bent, with
the direction inside of cover sheet. At
the application the next 2 clamps are to
be prepared. The opened periodical will
be placed between the clamps, then the
clamps shall be bent properly.
|
- Application:
Office,
home
|
- Advantages:
Since a periodical has already been
filed, can be removed and put back
without touching the others. The binding
process requires no ravage. The filed
periodicals can be read on their entire
width.
|
- Stage
of development: Prototype.
|
- Documentation
available: Yes
|
The
inventor(s)
- Self
introduction:
He is 46 years old,
organisational chemical engineer
|
The
protection
- Form:
Exhibition
priority
- Priority: 04.05.2000
- Countries
where it is force: Hungary
|
Business
intention: Offer for utilisation.
|
Contact
- Name:
Imre KAMONDY
- E-mail:
genius@inventor.hu
- Fax:
- Address:
H-6090 Kunszentmiklós, Petőfi
ltp. B/12, Hungary
|
