Radial ceiling ventilator, sales promotion media
The invention
  • The problem to be solved:
    The air mixing ventilators are found usually in the central part of the rooms and are rotating this is why they draw the attention of the people. The use of their surface as sales promotion media is almost impossible due to their fast rotary movement and small steady base. A large, slowly moving or steady surface should be required that can be used for sales promotion purposes. The invention solves this problem.
  • Definition:

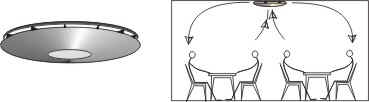

    The object of the invention is a ventilator in a housing that is open around, with a radial blade impeller that is hidden by a bottom cover. The bottom cover hides almost completely the radial blade impeller and its surface offers an ideal place to paint there sales promotion text or figures. This bottom cover can at will be slowly rotated or can be in fixed position.
  • Presentation:
    The invented ventilator design uses a radial blade impeller, practically closed on the top, that is mounted on the external rotor of the electric motor. The motor can be ceiling-mounted or mounted on a supporting structure as usual. The optionally shaped bottom cover is fastened to the fixed stator and, if required, the bottom cover can slowly be rotated by a transmission gear or by a separate motor and it can simultaneously be used as an air baffle. On the bottom cover surface any sales promotion text or figure can be painted.

  • Application:
    This ventilator can be used in public premises (restaurants, bars, offices, shops) and, in general, in the areas where no central air ventilation facilities are used.
  • Advantages:
    Using this kind of ventilator, a new, actually non-existent sales promotion holder surface can be obtained and used in the most frequented points of the public premises. It is energy saving, draught-free, produces evenly distributed, low velocity air motion. It is a new interior decoration element that determines the mood and atmosphere of the room.
  • Stage of development:
    A demonstration model is available.
  • Documentation available: Yes
The inventor(s)
  • Name(s): Csongor CZINTOS
  • Self introduction:
    The inventor is 45 years old, qualified mechanical engineer since 1979. He worked in the fields of public utility design, construction and operation, in the metal-industry, and in the lighting engineering, at first as employed and later as self-employed.
The protection
  • Form: exhibition priority
  • Priority: 4 May, 2000.
  • Countries where it is force:
Business intention: The inventor should like to sell the licence and he is looking for development co-operation partner.
