The
invention
- The
problem to be solved:
Dosed dry grain-fodder for horses by
automatically.
|
- Definition:
The equipment is operated by
electricity, programmable, automatic
feeder equipment for horses kept in
horse-bays.
|
- Presentation:

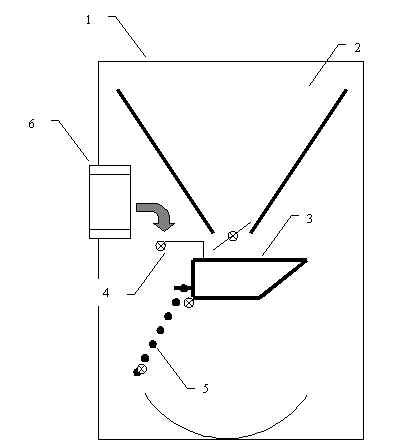

As visible on the attached
figure the equipment has an outer body
(1). It that a container (2) stores the
fodder. From bottom hole of the container
flows down the fodder to the dosing cup
(3) which hold upper position a
controlled bolt (4) and a draw back
spring (5). The operation of the filled
up dosing cup controlled by the
(electrician) controlled bolt. When the
control unit (6) draws the bolt, the
dosing cup – activated by the
own-weight of the fodder – turns down
and the fodder flows out. The control
unit is a built-in, programmable
microprocessor or a pc.
|
|
|
- Advantages:
The main target of this development is to
spare human work and execute the task
automatically. An important point of view
by development was to reduce the
necessary time of control in the stable.
Also in this way the horses get to eat
fodder in accordance with their own
digestive peculiarity.
|
- Stage
of development: There is
prototype and “0”-serie.
|
- Documentation
available: Complete.
|
The
inventor(s)
- Name(s):
Gábor MAGYAR, László TÖRÖK,
Dezső FODOR
- Self
introduction:
Magyar, Gábor agricultural engineer;
Török, László engineer-economist;
Fodor, Dezső associate professor,
University of Szeged, College of
Agriculture
|
The
protection
- Form:
Patent pending
- Priority:
- Countries
where it is force:
|
Business
intention: We have the opportunity of
the production. We interest to trading partners
all of the world. In case of a fair offer the
invention maybe for sale.
|
